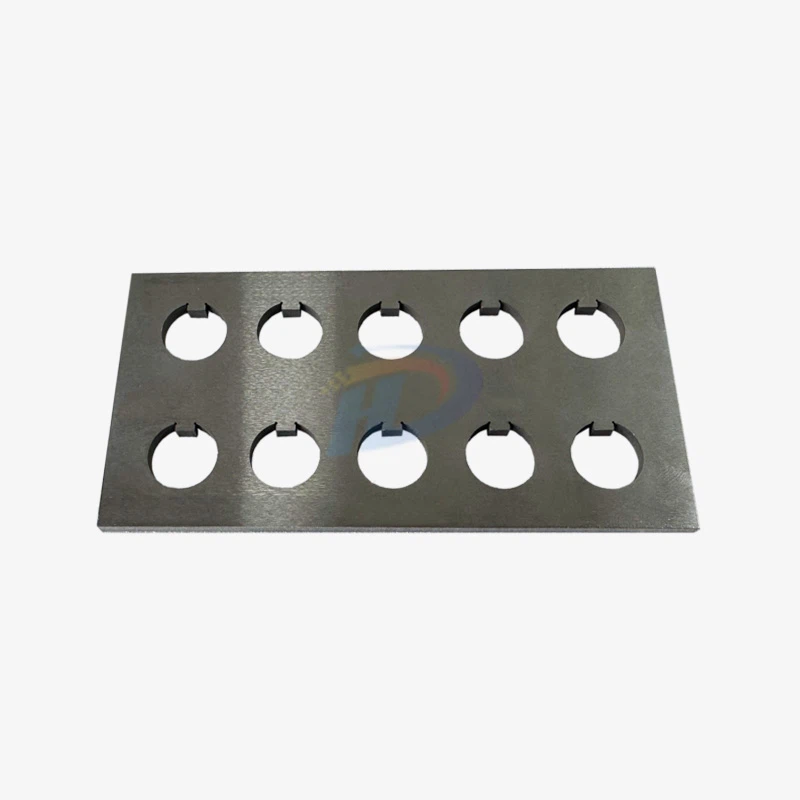

Khoom Description
CNC milling fixture yog ib qho cuab yeej los kho cov workpiece thiab coj cov cuab yeej ua haujlwm ntawm CNC milling tshuab. CNC milling machining fixture yuav tsum tsis siab, muaj qhov yooj yim txoj hauj lwm, clamping mechanism yuav ua tau, cov qauv tsim yog tib yam li universal milling tshuab fixture, ua ke nrog nws cov yam ntxwv muab tso rau pem hauv ntej ob peb yam kev cai:
(1) milling fixture los xyuas kom meej lub orientation ntawm lub tshuab cuab tam installation, tswj lub positioning nto ntawm qhov chaw thiab qhov kev sib koom ua ke loj ntawm lub tshuab cuab tam hu.
(2) Lub fixture yuav tsum qhib, lub clamping mechanism tivthaiv thiab ua nto kom muaj kev nyab xeeb nyob deb, lub zog tivthaiv yog tsawg, tiv thaiv kev sib tsoo nrog lub milling tshuab Cheebtsam.
(3) Lub rigidity thiab stability ntawm lub fixture yog zoo dua, sim tsis txhob hloov lub clamping taw tes, yog hais tias lub hloov tsis tuaj yeem rhuav tshem qhov tseeb qhov chaw ntawm lub fixture los yog workpiece.
Raws li cov cuab yeej tseem ceeb uas ua lub luag haujlwm tseem ceeb hauv CNC machining, CNC fixtures tuaj yeem ua haujlwm sai dua raws li cov qauv tsim thiab tsim cov khoom precision. Kev siv lub laj thawj ntawm CNC fixture tuaj yeem ua kom qhov sib xws thiab kev sib hloov ntawm CNC machining txheej txheem.
CNC milling yog ib txoj hauv kev txiav cov khoom ua haujlwm rau hauv qhov xav tau thiab loj nrog lub khoos phis tawj programmed txiav cov cuab yeej. Feem ntau CNC milling clamps muaj xws li cov lus teb clamps, vise clamps, fixture phaj, T-slots thiab indexing clamps.
CNC jigs yog tsim rau ntau yam CNC machining manufacturing kev lag luam, thiab lawv cov dej num tau ua ke nrog cov machining hom rau tig, milling, sib tsoo thiab tho txawv, thiab tus tsim txiav txim siab nws daim ntawv thov. CNC fixtures siv qhov zoo ntawm qhov chaw thiab clamping hauv lawv cov haujlwm.
Kev Kho Hniav Ntug
|
cnc milling fixture OEM / ODM |
Txais kev cai tsim |
|
Cov qauv dawb yog muab ua ntej tsim khoom |
|
|
Ib-nres ua los ntawm machining mus rau saum npoo kho |
|
|
Ua siab ntev |
kev zam tshwj xeeb tuaj yeem tham nrog tus neeg siv khoom raws li cov khoom siv, qhov loj thiab geometry. |
|
Nto roughness |
Ra 0.1~3.2 |
|
Ntim |
Lub hnab yas puab; Outer Standard Carton Box, Los yog raws li cov neeg siv khoom xav tau |
|
Kev tswj kom zoo |
Txhua qhov loj me yuav raug kuaj xyuas 100%. |
|
cnc milling fixture Daim ntawv thov |
Universal ua ke fixture, tshwj xeeb milling fixture, multi-station fixture, pneumatic los yog hydraulic fixture, nqus fixture, universal milling fixture |
Vim li cas thiaj xaiv Peb Cov Kev Pabcuam Precision Parts
Founded hauv 2016, Dahong Precision tau cog lus rau precision qhov chaw ua, ib txwm muab cov neeg xav tau kev pab ua ntej. Peb muaj ib pab neeg ua haujlwm tshaj lij los tsav koj cov haujlwm mus tom ntej thiab xyuas kom lawv tsis txhob nres vim muaj ntau yam teeb meem. Koj tuaj yeem ua yeeb yaj kiab ncig xyuas peb lub Hoobkas lossis tuaj ntsib peb ntawm tus kheej kom nkag siab tob txog peb cov txheej txheem tsim khoom thiab chaw tsim khoom. Thov koj xav tiv tauj peb thiab peb tos ntsoov yuav pab koj.
Dahong Precision yog CNC milling fixture processing Hoobkas, muab kev pabcuam machining rau kev lag luam tsheb, khoom siv kho mob, kev lag luam hluav taws xob, thiab lwm yam. Peb muaj lub chaw machining uas khiav 24 teev hauv ib hnub, tso cai rau peb los tsim ib qho, me me. batch ntau lawm qhov chaw hauv ob peb hnub.
Peb muaj ib lub chaw machining, nruab nrog CNC milling tus pin, CNC tig tus pin, sib tsoo tus pin, hlau txiav thiab lwm yam kev txhawb nqa tshuab ib-nres kev pab cuam, thaum muaj kev paub txog qhov project tswj pab neeg, los ntawm cov kev kho deg kev pab cuam outsourcing Hoobkas muaj zog txhawb, muaj ua ib tug neeg ntseeg siab rau 9 xyoo.
Peb nruj me ntsis ua raws li kev tswj hwm zoo kom ntseeg tau tias cov khoom zoo sib xws thiab ua raws li kev cia siab. Daim ntawv tshaj tawm kev tshuaj xyuas kuj tau lees paub tias cnc milling fixture koj tau txais tsis muaj qhov tsis xws luag.
Txhua Yam Koj Yuav Tsum Paub
Dab tsi yog qhov khoom siv hauv CNC milling?
CNC fixture yog tshwj xeeb uas tsim los rau kev txiav ua haujlwm ntawm txhua yam ntawm CNC tshuab (tsuas yog npog cov tshuab milling, lathes, laser txiav tshuab thiab engraving tshuab, thiab lwm yam) kom ua tiav qhov ruaj khov thiab ua tib zoo tsim CNC machining workpiece (los yog qhov chaw). CNC fixture nyob rau hauv CNC tshuab txiav los yog milling thiab lwm yam kev khiav hauj lwm, yuav ua tau ruaj khov kho qhov chaw, thiaj li ua tau zoo kom muaj kev ruaj ntseg thiab raug ntawm cov txheej txheem ua, kom tsis txhob muaj qhov chaw nyob rau hauv cov txheej txheem ntawm kev hloov chaw, co thiab lwm yam xwm txheej, rau kev ua tau zoo, high-precision ua tau los muab lub hauv paus ruaj khov thiab txhim khu kev qha.
Dab tsi ntawm CNC milling clips koj muaj?
CNC milling tshuab jig feem ntau suav nrog universal ua ke jig, tshwj xeeb milling jig, ntau lub chaw nres tsheb jig, pneumatic lossis hydraulic jig, nqus jig, dav milling jig.
Universal sib xyaw ua ke yog tsim rau me me batch ntau lawm los yog kev loj hlob ntawm nruab nrab thiab me workpiece milling ntawm lub CNC milling tshuab. Tshwj xeeb milling fixture tsim rau ib tug tej yam los yog zoo xws li ob peb workpiece tsim thiab tsim, loj ntau lawm los yog kev loj hlob yog tsim nyog. Lub chaw nres tsheb ntau lub chaw nres tsheb tuaj yeem tuav ntau lub workpieces tib lub sijhawm, txo cov cuab yeej hloov pauv, ua kom yooj yim rau kev ua haujlwm thiab thauj khoom thiab tshem tawm, uas yog qhov tsim nyog rau kev npaj lub sijhawm luv thiab txhim kho cov khoom tsim tau, thiab tsim nyog rau nruab nrab batch ntau lawm. Pneumatic los yog hydraulic fixture yog tsim rau zus tau tej cov loj batch, lwm fixture ua hauj lwm hnyav workpiece, yuav txo tau siv zog thiab txhim kho productivity, tab sis cov qauv yog complex, siab nqi, ntev manufacturing voj voog. Nqus fixture yog haum rau loj positioning dav hlau los yog sealing cheeb tsam ntawm lub workpiece, ib co CNC milling tshuab nrog ib tug dav lub tshuab nqus tsev platform, installation ntawm tsis tu ncua rectangular dawb paug, nrog ib tug tshwj xeeb roj hmab sawb embedded nyob rau hauv lub sealing qhov, muab tso rau ntawm qhov dawb paug, pib lub tshuab nqus tsev vacuum. twj tso kua mis yuav clamped. CNC milling feem ntau yog siv hauv lwm qhov, faib lub taub hau thiab peb lub puab tsaig chuck thiab lwm yam khoom siv dav dav.
Dab tsi yog qhov txawv ntawm qhov clip thiab lub cuab yeej?
Kev tsim cov cuab yeej thiab cov khoom siv yog cov txheej txheem ntawm kev tsim cov khoom tshwj xeeb thiab cov cuab yeej siv los pab tsim cov khoom siv ntau yam. Thaum cov kws tshaj lij tsim cov cuab yeej xws li jigs, tuag thiab tuag, nrog rau cov cuab yeej txiav, lawv yuav tsum xav txog ntau yam. Cov yam ntxwv no suav nrog kev kho cua sov, geometry, xaiv cov khoom siv thiab ua kom tiav.
